Features
.png)
Strong Stability
Functions
.png)

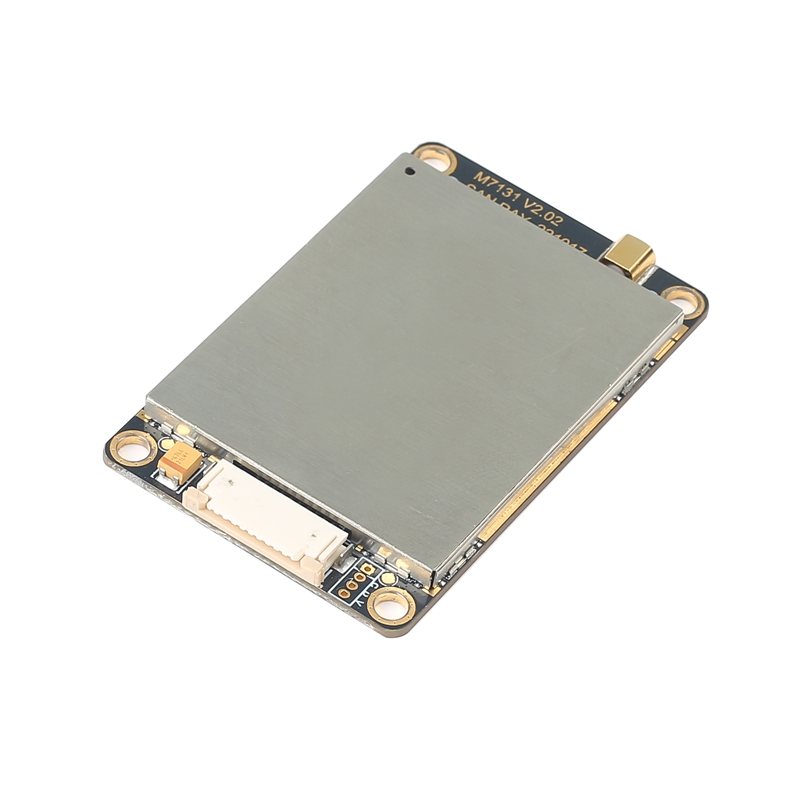

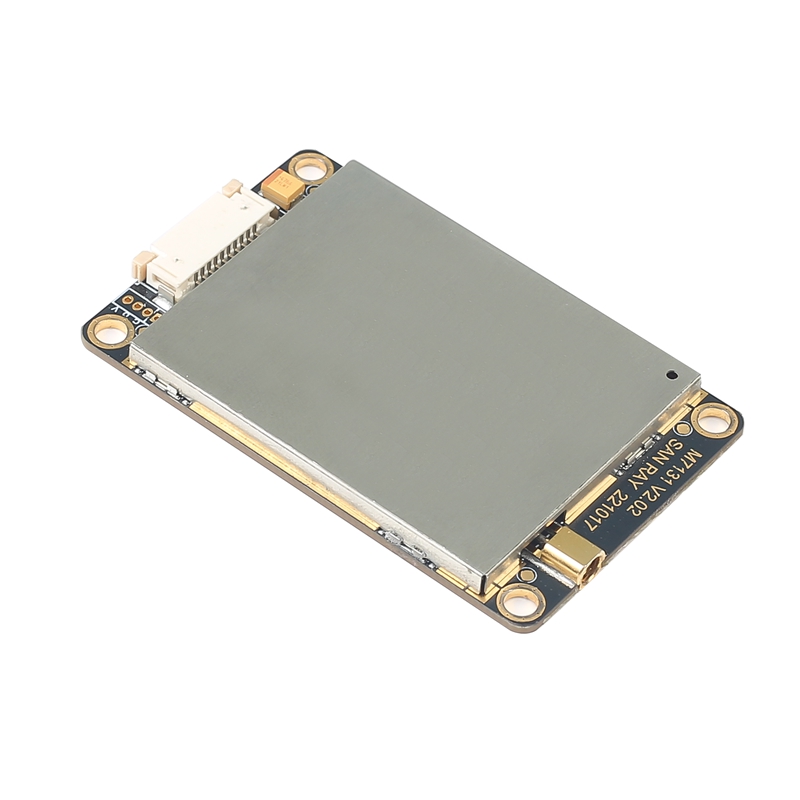

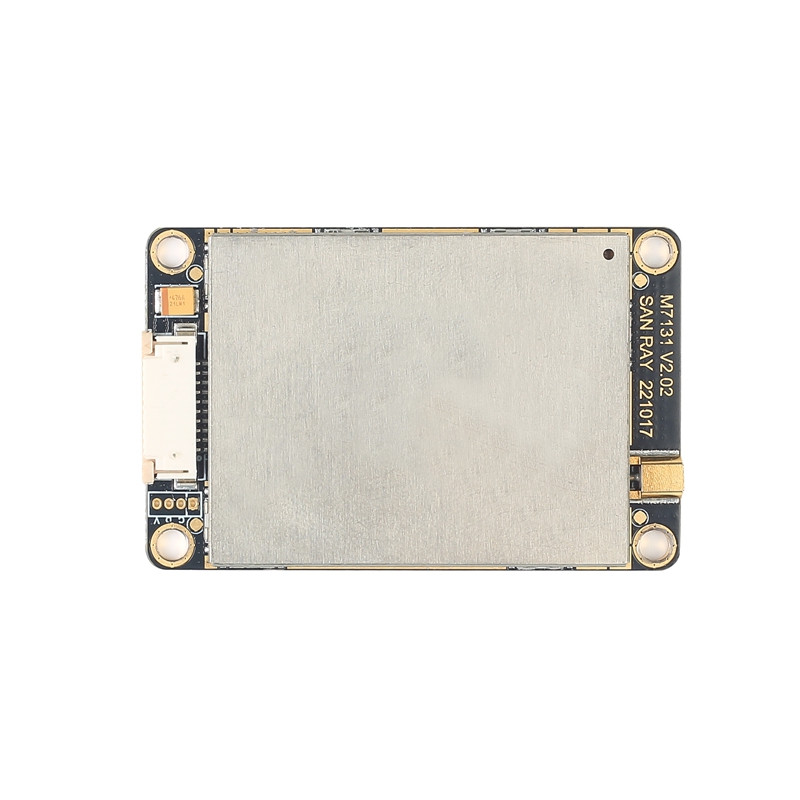

UHF RFID(PHYCHIPS PR9200Chip)
Technical Parameters
| Air Interface Protocol | EPC global UHF Class 1 Gen 2/ISO 18000-6C |
|---|---|
| Working Frequency | 840～960MHz（Default frequency band 902～928MHz） |
| Support areas | China, Europe, United States, South Korea, Japan, Taiwan |
| Working voltage | DC4.0V～5.5V |
| Peak operating current | ≤2.5A |
| Standby current | ≤20mA |
| Sleep current | ≤1mA |
| Maximum output power of RF port | 33dBm |
| Operation temperature | -20℃～60℃ |
| Working humidity | ≤95%（+25℃） |
| Storage temperature | -40℃～85℃ |
| Maximum receiving sensitivity | -82dbm |
| Antenna interface impedance | 50Ω |
| Serial communication parameters | Baud rate adjustable (default 115200bps), parity: none, Data bit: 8 bits, stop bit: 1 bit |
| Read distance | 80m(Depending on the tag output power) |
|---|---|
| Read rate | 200 pcs /second （ID number only） |
| Size | 63mm×36mm×4mm(L×W×H) |
| Power | DC5V |
| Shutdown current | 1uA |
| Receive current | 30mA（Power consumption 0.15W） |
| Emission current | 100mA（Power consumption 0.5W） |
| Operating temperature | -20℃-60℃ |
| Storage temperature | -50℃-80℃ |
| Working humidity | 5%-95% （No condensation） |
| IP level | IP54 |
