Features
.png)
Strong Stability
Functions
.png)

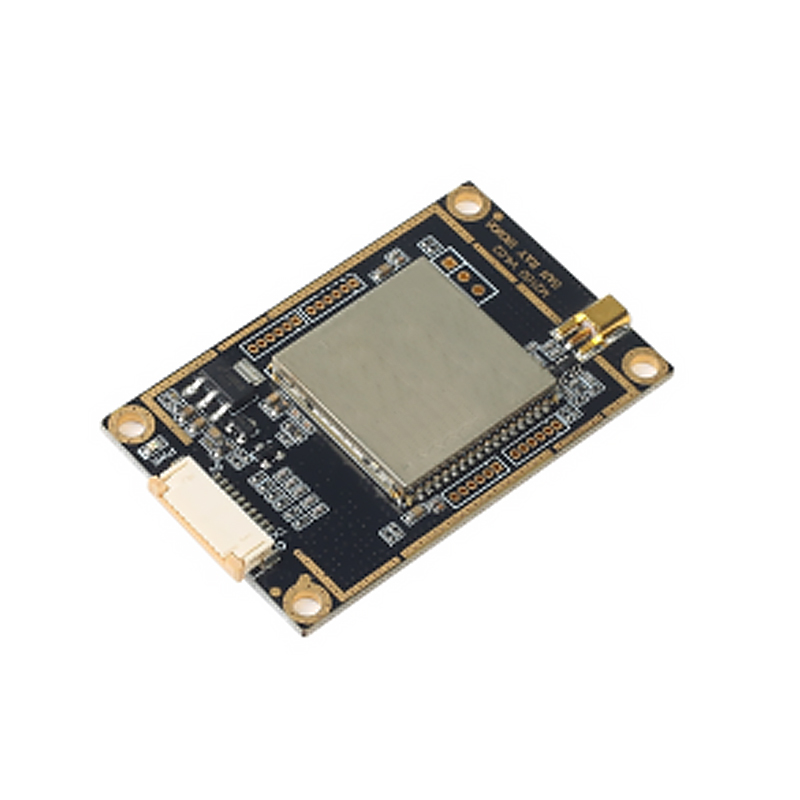

UHF RFID(PHYCHIPS PR9200Chip)
Technical Parameters
| Sensor | PHYCHIPS PR9200 |
|---|---|
| M2100 | Version V3.0 |
| Air interface protocol | EPC global UHF Class 1 Gen 2/ISO 18000-6C |
| Working frequency | 840～960MHz |
| Support area | China, Europe, America, Korea, Japan, Taiwan ...... |
| Operating Voltage | DC 5V |
| Maximum operating current | ＜350mA |
| Standby Current | ＜15mA |
| Sleep Current | ＜0.5mA |
| Maximum RF output power port | 28dBm |
| Tag maximum read distance | ＞2.5 m (2dBi ceramic antenna + normal white card) |
| Operating temperature | -25℃～+65℃ |
|---|---|
| Working humidity | ≤95%（+25℃） |
| Storage temperature | -40℃～+80℃ |
| Maximum receiver sensitivity | -60dBm |
| Antenna Impedance | 50Ω |
| Serial communication parameters | Baud rate adjustable (default 115200bps), Parity: None Data bits: 8, stop bits: 1 |
| Antenna Interface | IPEX |
| Module Interface | Pick + 20PIN 2.0MM pitch stamp holes 10PIN FPC |
| Dimension | 30.0×25.0×4.0MM (Including shield) |
