Features
12dbi
IP65 Sealing
Octa-core 64 bit 2.0 GHz
Performance
size | 208mm×125mm×35mm(L×W×H) |
---|---|
Weight | 0.75kg |
Power Consumption | 12W |
power | DC12V |
Installation method | Installation of clamps |
operation temperature | -40℃~70℃ |
storage temperature | -50℃~80℃ |
Working humidity | 5%~95%~(No condensation) |
IP lever | IP54 |
Communication

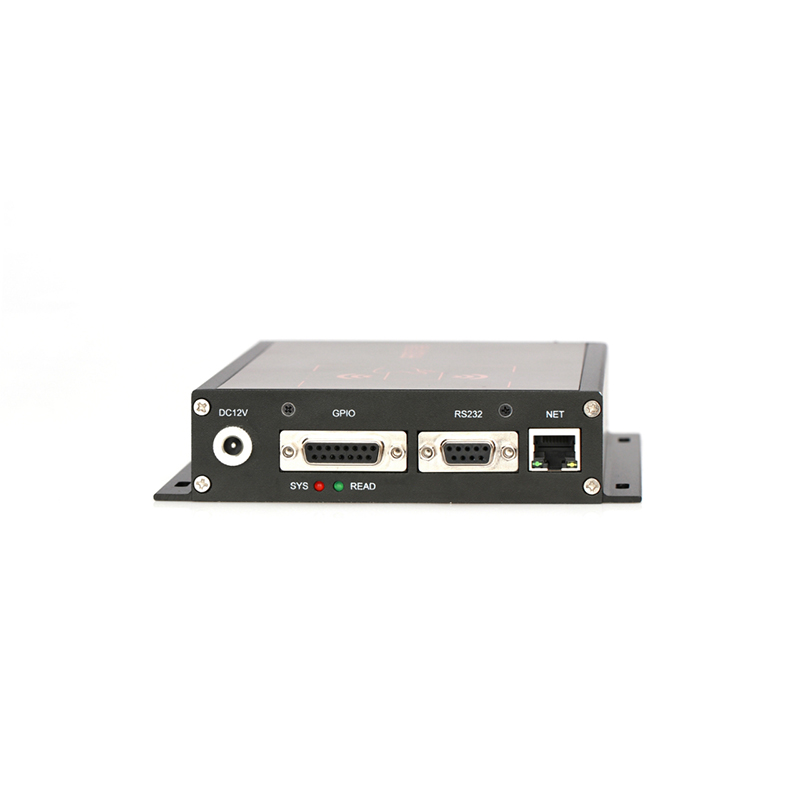

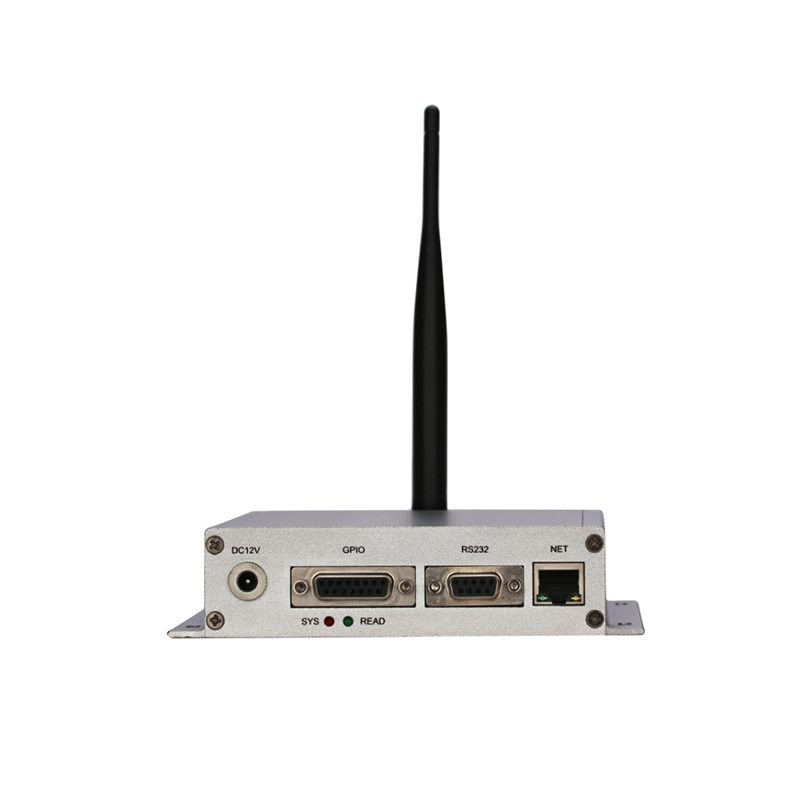

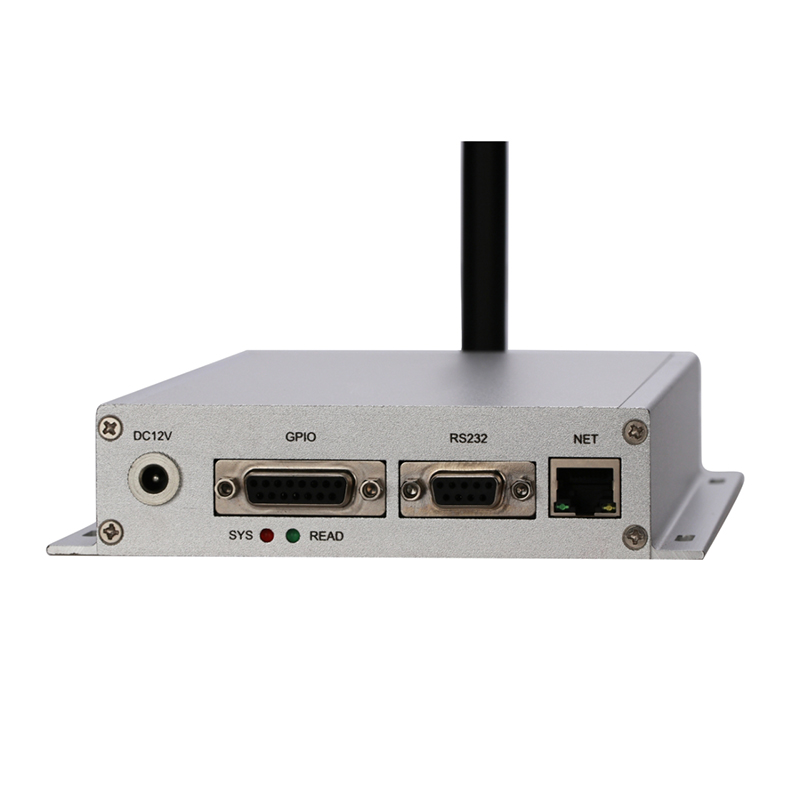

communication interface | RS232、RS485、Wiegand 26 / 34,10 / 100M adaptive Ethernet interface |
---|---|
I/O interface | 2-channel input interface, 4-channel output interface (optional) |
Scalable wireless module | 802.11 module, the whole network through the 4G module |
UPGRADE | Support serial port upgrade |
Serial communication parameters | Baud rate adjustable (default 115200bps) |
Application software platform | Provide software development kit (SDK) and API |
TAG operation
tag operation support | Private protocol |
---|---|
Support tag work mode | Active tags |
Read tag distance | 80m (depending on the output power of the tag) |
Recognition speed | 200 tags / sec (ID only) |
Operating
Working Frequency | 2.4~2.483G |
---|---|
Output power | +20dbm |
Receiver sensitivity | -95dBm |
Communication speed | 1Mbit/s |
Recognition angle | Omnidirectional / directional (depending on whether the array is directional or omnidirectional) |
Polarization mode | Vertical polarization |
